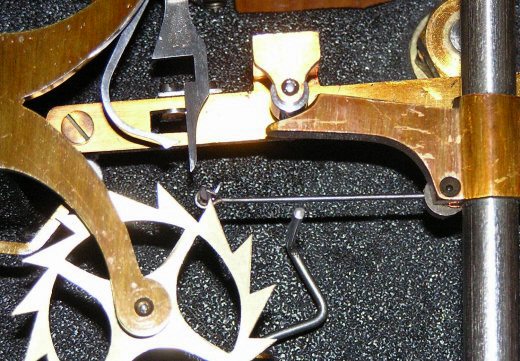

	Synchronome - Moment of Impulse The actual moment of impulse with the roller on the impulse pallet. The impulse force that is given is not uniform, in so much that equal force is not given to the pendulum through-out the time the roller is running down the slope. Ideally the middle of the impulse force should coincide with the mid point of the swing of the pendulum, which the Synchronome is designed to do. If it does not, you get what is called escapement error. Original Synchronome Literature and Instructions	Custom Search My Other Websites: Synchronome Introduction Operation Setting Up Impulse Movement Rating Date Chart Barometer Pressure Door Open Effect Circular Error Door Open Effect Power Station Model Synchronome Literature Gents Pul-syn-etic Introduction Movement Operation Wheel Operation Impulse Slave 30 Minute Pulses Instruction Manuel Gensign Introduction The Movement (Overall) The Movement (Front) The Movement (Rear) Rear Flywheel & Spring Post Office 36 Introduction Toggle Operation The Countwheel Mechanism Clock 'As Found' Carl Bohmeier Introduction Escapement Movement Pendulum and Case Winding Mechanism Bürk Master Clock Introduction General Tele's Ltd Introduction Page 2 Slave Dials Introduction Synchronome Slave Octagonal Slave Programmer Introduction Close Up 1 Close Up 2 Links and Contact Page Links
