P Strauss' 10" & 6" Tesla Coils


Search this site:

Phillip's Big tesla coil at Cambridge 2013
Above: P Strauss' 10 inch coil in action.

Here is a Link to Phillip's custom made 50 x 11 inch Toroid that you see in use above. I have kindly been allowed to use this, so it is often seen on my own coil as well, and has made a big difference to the performance of both our coils.
On my Video Page I have a video (4th one down) showing the difference in streamer behaviour with this larger toroid.

Tesla coil big toroid Phillip Strauss
As for the chap standing far left (me): Two Aluminium 'cripple sticks' & High Voltage:
What could possibly go wrong?




Photo: Taken by & copyright of Derek W
extremeelectronics

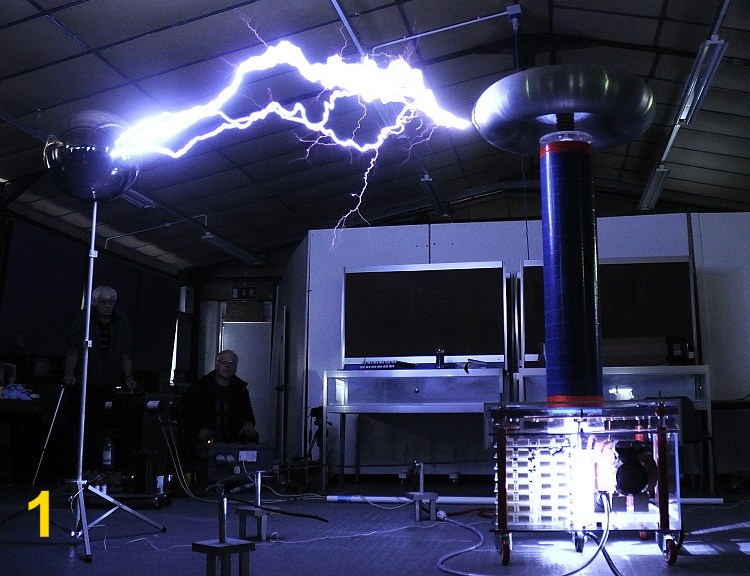

10 Inch 1st light
(or soon after).

Cambridge 2012


big Tesla coil




Photo:
Taken by & copyright of Derek W

extremeelectronics


Pic 2:
The
ceiling is low at this location, stopping the full potential of the 10" coil

(Nottingham 2013)
Tesla coil strike




Photo:
Taken by & copyright of Derek W

extremeelectronics

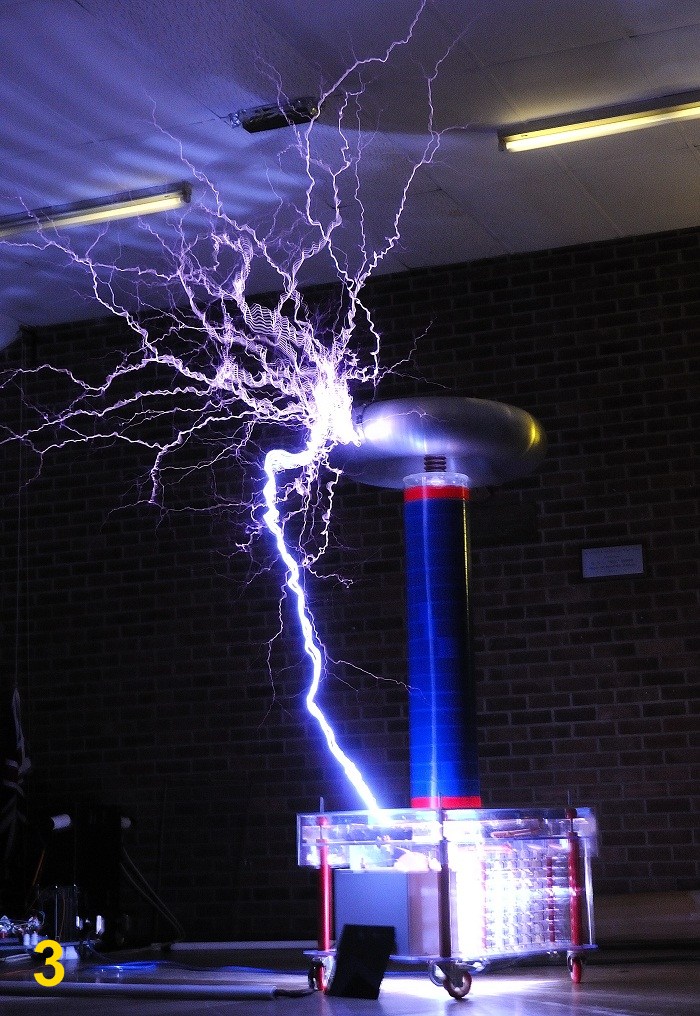

Pic 3:
The
primary takes a strike at this point

(Nottingham 2013)
Tesla coil at Nottingham 2012

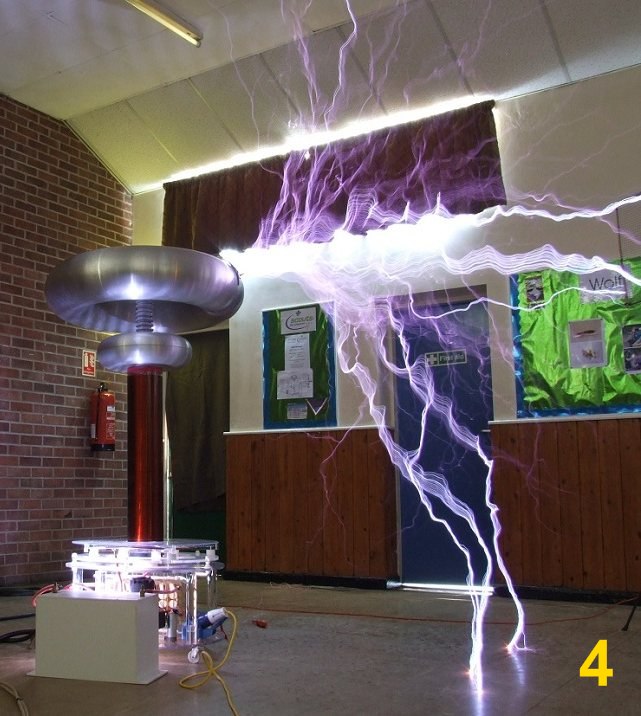

Pic 4:

The 6 inch at Nottingham 2012

Phillip Strauss' Tesla coil video

Phillip's six inch tesla coil

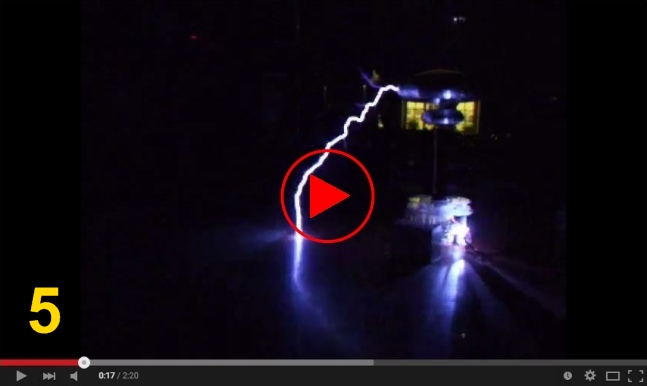

Pic 5:

The 6 inch at Kew Museum

Set up upon arrival (2012)

 6 inch Tesla coil

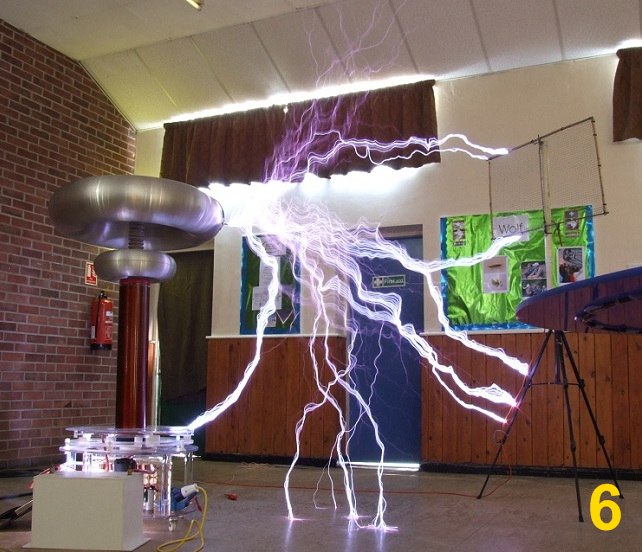

Pic 6:

The 6 inch at Nottingham 2012

Tesla video link

Setting up the tesla coil

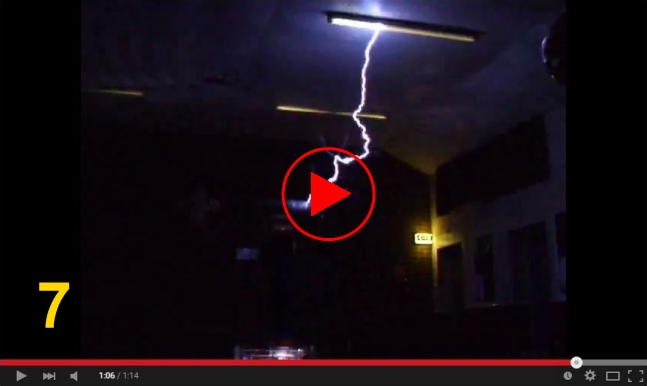

Pic 7: Setting up in the evening

Nottingham

(2012)
