A 50 Inch Custom Made Toroid
Search this site:

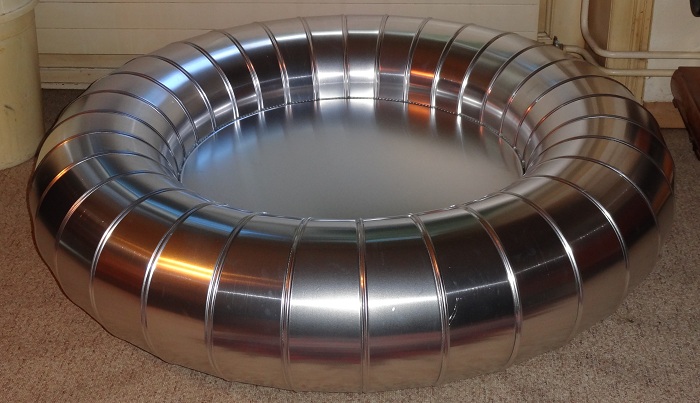

A perfectly proportioned coil and toroid.

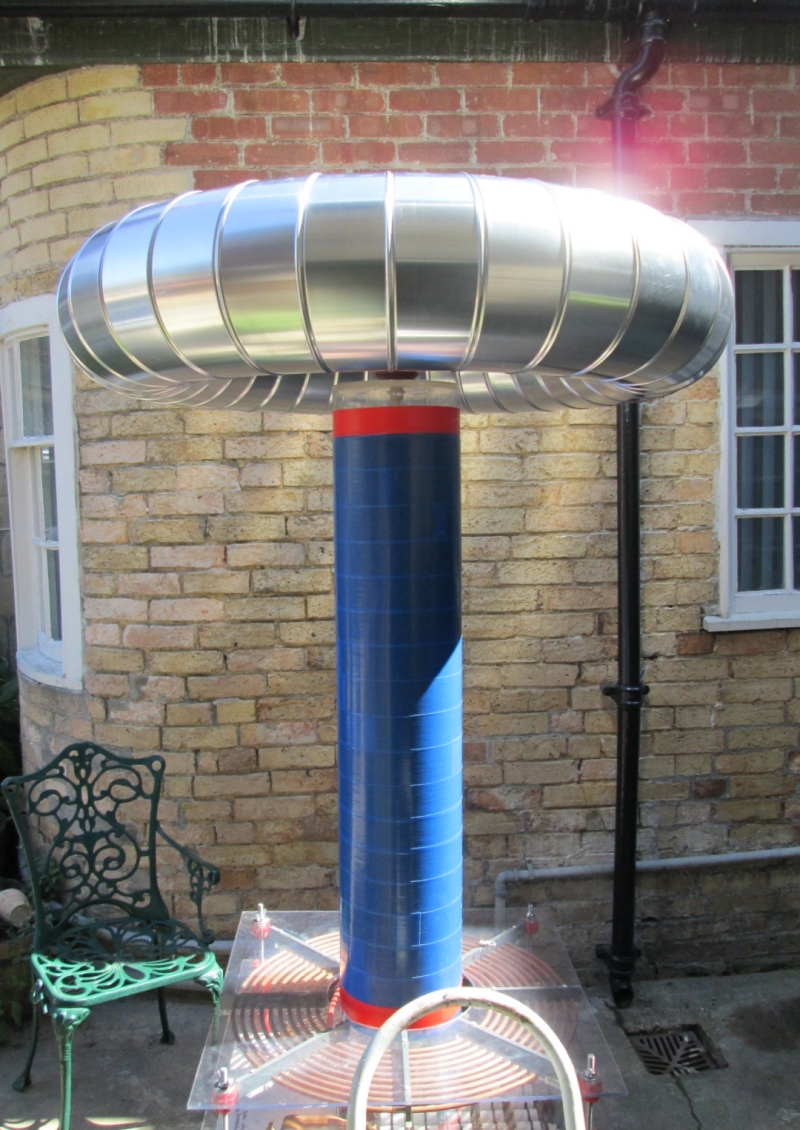

The secondary is 10 inches in diameter.
Photo Copyright of Kurt Schraner & used with permission

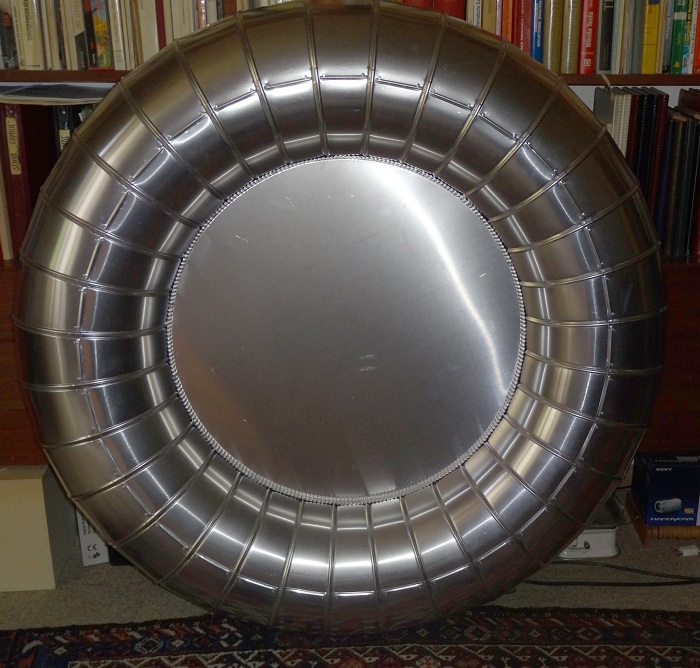

This beautifully manufactured toroid was custom made in Switzerland by Christos Galanis.
NB: (Although I am kindly allowed to use this toroid it belongs to a fellow coiler - P Strauss)
Overall sizes:
Main diameter: 49.4 inches (125.5cm)
Minor diameter: 11.18 inches (28.4cm)
It consists of 32 segments, each being made from a 'fish-shaped' template. These can be seen in pictures of the manufacturing process, which can be seen Here. (Note: Prices quoted no longer apply, as 14 years out of date)
Each individual 1mm Aluminium segment then has a rolled edge applied, allowing it to be joined to its neighbour.
Unfortunately the manufacturer was unable to provide shipping, so collection was from Switzerland.
This beautifully manufactured toroid was custom made in Switzerland by Christos Galanis.
NB: (Although I am kindly allowed to use this toroid it belongs to a fellow coiler - P Strauss)
Overall sizes:
Main diameter: 49.4 inches (125.5cm)
Minor diameter: 11.18 inches (28.4cm)
It consists of 32 segments, each being made from a 'fish-shaped' template. These can be seen in pictures of the manufacturing process, which can be seen Here. (Note: Prices quoted no longer apply, as 14 years out of date)
Each individual 1mm Aluminium segment then has a rolled edge applied, allowing it to be joined to its neighbour.
Unfortunately the manufacturer was unable to provide shipping, so collection was from Switzerland.
Photo Copyright of Kurt Schraner & used with permission
Weight is an amazingly light 15.65 pounds (7.1kG)
